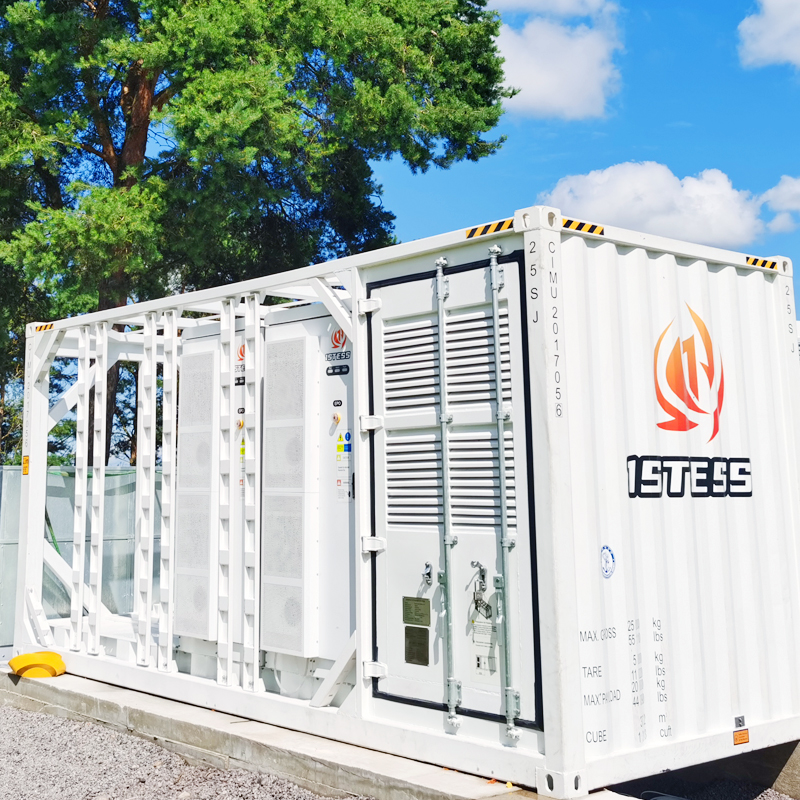

BESS 20ft Container 150KW 1MWh 10MWh Container Energy Storage System

Product Categories

Shenzhen First Tech Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Product Description:

Industrial Park Energy Storage

Capacity Expansion Peak-load Shifting TOU Tariff Arbitrage Power Quality Management

Solar + Storage +EV Charging Station

Store Extra Solar Energy Peak-load Shifting Electricity Cost Saving Power Expansion for More Chargers Eco-friendly Solution

Solar + Storage Microgrid

Backup Power Store Extra Solar Energy Distributed Energy Integration Optimizing The Power Grid Upgrading

Type	P400C860	P500C1075	P600C1290	P700C1505	P800C1720
DC side parameters
Cell type &capacity	LiFePO₄-280Ah
Battery module type	1P20S
System configuration	4*1P240S	5*1P240S	6*1P240S	7*1P240S	8*1P240S
Capacity(BOL)	860kWh	1075kWh	1290kWh	1505kWh	1720kWh
AC side parameters
Grid type	3P4W+PE
Rated output power	400kW	500kW	600kW	700kW	800kW
Rated voltage	AC400V
Rated frequency	50/60(±5)Hz
Maximum output current	577A	722A	866A	1010A	1155A
Harmonics	<3%(@rated power)
Overload capacity	110%,10mins;120%,60s
General parameters
Isolation transformer	No
Protection level	Outdoor installation (Battery cabinet:IP55,Electrical room:IP34)
Container anti-corrosion grade	C3
Operation temperature*	-20℃~50℃
Relative humidity	0~95%(non-condensing)
Permissible altitude**	<2000m
Cooling method	Battery cabinet:HVAC,Electrical room:forced air cooling
Fire fighting system	FAS &FM200/Novec1230
Noise emission	≤75dB
Dimension (WDH)	20HQ container (6058mm2438mm2896mm)
Maximum weight	24500kg
Communication interface	Ethernet
Communication protocol	Modbus TCP/IP
Warranty	5 years (can be extended to 10 years)Warranty
Certification	System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3 PCS:G99,EN50549,AS4777.2,VDE4105
