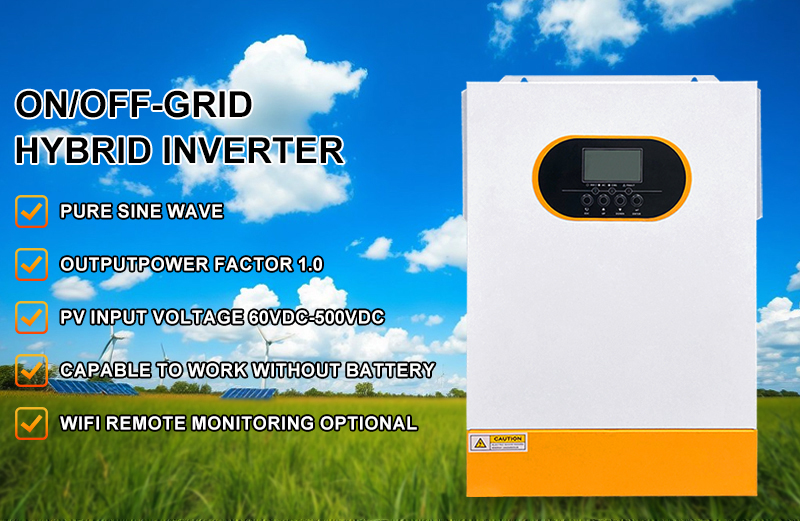

High Efficiency 6.2KW MPPT Solar Hybrid Inverter with Pure Sine Wave Output
Product Description:
1.Lithium battery activation function by PV or Utility
2.Compatible work with lifepo4 battery via Rs485
3.Pure sine wave
4.Powerfactor 1.0
5.PVinput Voltage 60Vdc-500Vdc
6.Built-inMPPT60A/100A/120A
7.Capable to work without battery
8.Detachable dustcover for harsh environment
9.WiFiremote monitoring optional
10.Support multiple output priority:UTL,SOL,SBU, SUB
11.EQ function to optimize battery performance and extend lifecycle
| Model Number | EM5500-48L | EM6200-48L | | Place of Origin | China | China | | Mounting Method | Wall Bracket | Wall Bracket | | Nominal Battery Voltage (V) | 48VDC | 48VDC | | Lithium Battery activation | YES( By PV or Utility) | YES( By PV or Utility) | | Nominal Voltage | 230VAC | 230VAC | | Lithium Battery communication | YES(RS485) | YES(RS485) | | Frequency | 50/60Hz | 50/60Hz | | Waveform | Pure Sine wave | Pure Sine wave | | Solar Charger Type | MPPT | MPPT | | Communication Interface | RS232+RS485 | RS232+RS485 | | PV Array MPPT Voltage Range | 60VDC~500VDC | 60VDC~500VDC | | Surge Power | 11000VA | 1240VA | | Size | 438*295*105mm | 438*295*105mm | | Weight | 9kg | 9kg | | Operating Temperature Range | (-10'℃ to 50℃) | (-10'℃ to 50℃) | |
Technical Parameters:
Applications:
The Off Grid Hybrid Solar Inverter comes with a communication interface, RS232, which allows users to connect it to a computer and monitor and control its performance. This feature makes it easy to keep track of the power output and to troubleshoot any issues that may arise.
The Hybrid Solar Inverter is suitable for a wide range of applications. It can be used in homes, offices, and other buildings that require a reliable power supply. The Off Grid Hybrid Solar Inverter is also suitable for use in remote areas where there is no access to the power grid. It can be used to power lighting, appliances, and other electrical devices.
