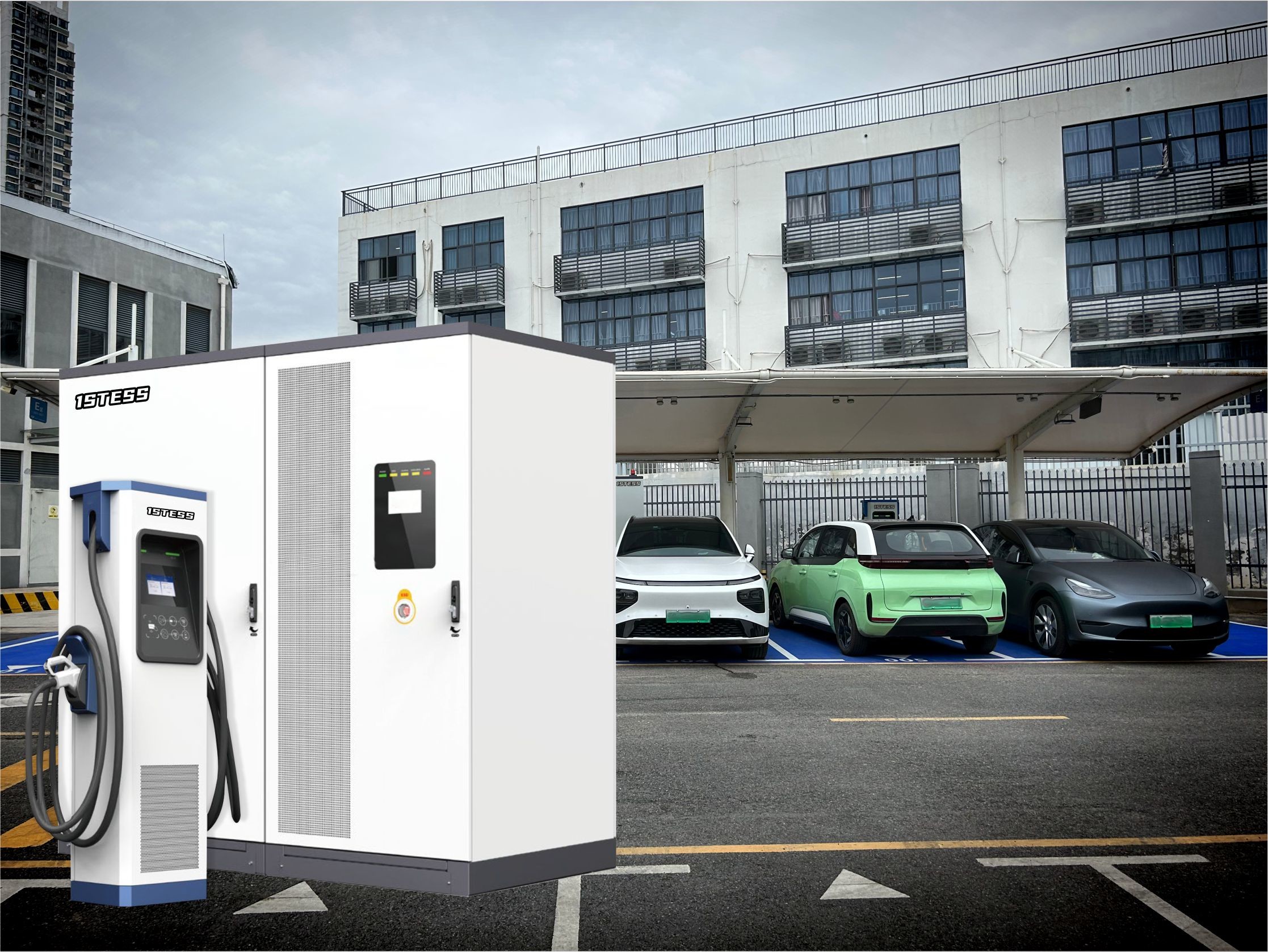

LCD Screen BESS Electric Vehicle Charging Station OCPP 1.6J Upgrade
To 2.0
Product Description:
Equipped with an LCD screen display, the BESS Ev Charging Station
makes it easy for users to monitor the charging status of their
electric vehicles. The LCD screen display also provides a
user-friendly interface that makes it easy to navigate the various
settings and options of the charging station.
In addition to its advanced features, the BESS Ev Charging Station
is also certified by CE and TUV Mark. These certifications ensure
that the charging station meets strict safety and performance
standards, making it a reliable and safe choice for charging your
electric vehicle.
With an IP55 rating for protection against dust and water, the BESS
Ev Charging Station is designed to withstand even the harshest
outdoor environments. This level of protection ensures that the
charging station will continue to function properly and safely,
even in adverse weather conditions.
Overall, the BESS Ev Charging Station is an excellent choice for
electric car owners who want a reliable and efficient charging
solution. With its advanced features, certifications, and IP
protection, this electric car battery charger is a top-performing
charging station that is sure to meet your needs.
Features:
- Product Name: BESS Ev Charging Station
- Display: LCD Screen
- Model: Ev Charging Station
- Input Voltage: AC 380V/480V
- Monitor: OCPP 1.6J Update To 2.0
- Certifications: CE, TUV Mark
BESS Sustainable Charging Solution, EV Power Station, Renewable
Energy Vehicle Charger
Technical Parameters:
| CHARGING DISPENSE | EXP200-FDC | EXP300-FDC | EXP500-LDC |
| DC output | Output connector | 2 connectors with DC-1 and DC-2 |
| Output DC voltage range | 150V-1000V |
| Max DC output current | 200A +200A | 300A +300A | 200A +500A/300A+500A |
| Ring net function support | Power can do 6 steps transfer in each connectors between three
dispensors |
| HMI | Tempered glass protective r capacitive Touch Screen LCD, two RGB
panel LED , E-STOP, RFID |
| Metering | 2 DC energy meters , GB/T 50063-2008 and DL/T 5137-2008 standard,
optional VDE and PTB certification type |
| Monitor | OCPP 1.6J, support firmware update to 2.0, smart charge and power
management support, LAN and LTE wireless modem support |
| Mechanical | Dimensions: W*H* D mm | 500*1750*260/155kg/1P55/1K10 | 500*1750*260/165kg/1P55/1K10 | 500*1750*350/190kg/1P54/1K10 |
| Charging connector capacity | GBT: 250A (optional 500A) CCS1/2: 200A (optional 250A, 300A or
500A) CHAdeMO: 125A |
|
| IBS200K1KC 200kWH BATTERY CUBE |
| Energy Storage Battery | 200kWh/280Ah Energy storage battery. Battery voltage: 627V-806V,
Charging/discharging ratio: 0.5 C dis/charge, max 0.75 C discharge
30 min |
| High Voltage Control Box | High voltage control box |
| Battery BMS | 2 level BMS structure: Battery Pack BSU + High voltage control box
BMU |
| Battery Capacity Expansion | Max 2 groups battery/battery cube access |
| Thermal Management | Outdoor industry cool and heat air condition application,
Intelligent partition thermal management |
| Fire suppression system | Temperature-activated fire extinguishing system + fire proble tube
+ Air pressure sensor and valves, emergency fan |
| Safety Sensor | Door access seneor++Smoke detector+Title alarm detector (0)+Harmful
gas detector (0) |
| Envirement Sensor | Water sensor + Temperature sensor + Humidity sensor |
| Protection Class | IP55 |
| Dimensions | W* H *D mm =1200 * 2200 * 1150 |
| Weight | 2500 kg (Full battery configuration) |
Applications:
The BESS Ev Charging Station, model number 540K2-200-200, is
designed with safety in mind. It comes equipped with overvoltage
protection, overcurrent protection, and leakage protection to
ensure safe and reliable charging for your electric vehicle.
With the OCPP 1.6J update to 2.0, this charging station is able to
monitor and track your charging sessions, providing you with
valuable information such as energy usage and cost. The BESS Ev
Charging Station outputs DC voltage ranging from 150V to 1000V,
ensuring it is compatible with a wide range of electric vehicles.
It supports the CHAdeMO, CCS1/2 charging standards, making it
compatible with most electric vehicles available on the market.
With an input voltage of AC 380V/480V, it is able to provide fast
and efficient charging for your electric vehicle.
The BESS Ev Charging Station can be used in a variety of occasions
and scenarios. It is perfect for use in public charging stations,
workplace charging stations, and residential charging stations. It
is also suitable for use in commercial settings such as shopping
centers and parking lots.
Investing in a BESS Ev Charging Station not only benefits your
electric vehicle, but also contributes to a more sustainable
future. With its renewable energy vehicle charger capabilities,
this charging station helps reduce our reliance on non-renewable
energy sources, making it an eco-friendly option.
